SPL Lab Wifi Bass Meter v3 + Next-Lab Power Sensor AC Clamp
$599.00
Brand: SPL LabOut of stock
Notify me when item is back in stock.
- Description
- Reviews (0)
Description
The SPL Lab Wifi Bass Meter v3 and SPL Lab Next-Lab Power Sensor Clamp combo is intended for measuring the noise level and sound pressure at the low frequency range. The measured signal can be provided by both the industrial equipment and the acoustic systems. A distinctive feature of this device is the LAB-BUS port for connecting external sensors of the NEXT-LAB series. Provided there are external sensors, it allows taking measurements of not only sound pressure, but also the voltage-current characteristics of electric circuits (when using the NEXT-LAB Power Sensor).
This bundle includes:
- 1 – SPL Lab USB Wifi Meter
- 1 – SPL Lab Next-Lab Power Sensor
SPL Lab USB Bass Meter Functions
- Wired and wireless data transfer
- Supports Windows, Android and iOS
- Battery life up to 3 hours
- Frequency range from 10 to 120 Hz
- Amplitude range from 110 to 190 dB
- Calibrated according to the TERM-LAB Classic and Magnum
- Free software for Windows

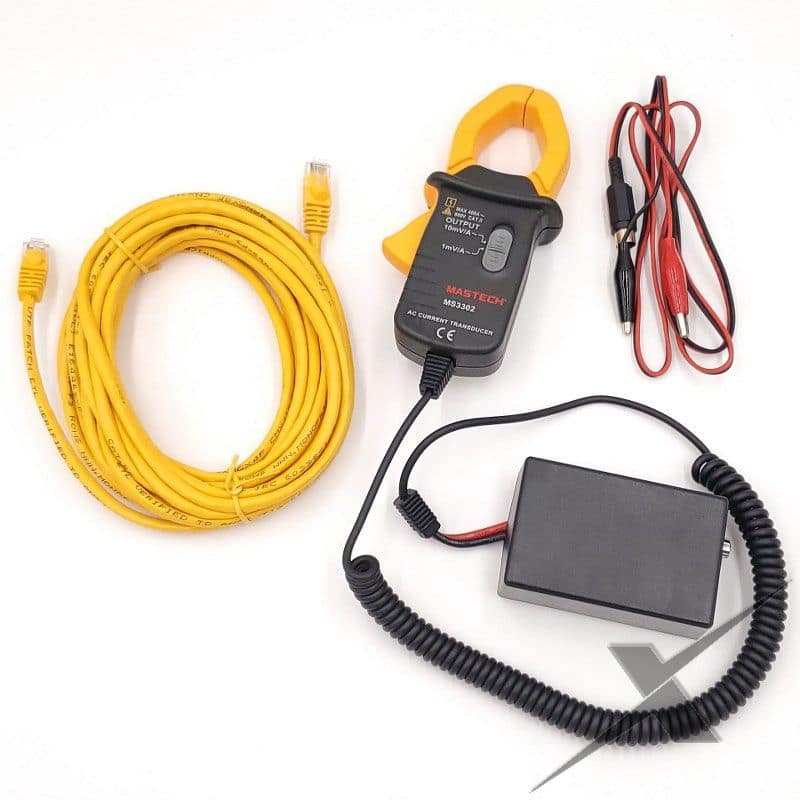

SPL Lab Next-Lab Power Sensor Functions
- Lab-Bus digital bus
- Internal dual-channel ADC
- Measuring direct current circuits(Hall sensor version only)
- Measuring alternating current circuits with frequency up to 15000 Hz
- Contactless current sensor from 1 to 1200A(Hall sensor version) or to 400A(Power Clamps version)
- Measuring voltage from 1 to 300 volt
- Measuring power up to 360 kW(Hall sensor version) or to 120 kW(Power Clamps version)
- True RMS algorithm
- Measuring impedance
- Distortion (clip) detector
